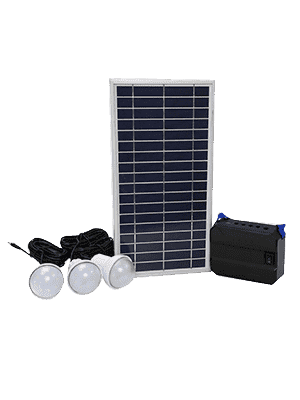

Elecssoloffers the most technically innovative range of solar-powered LED Lighting & Power Solutions. We offer 200W - 300W Solar panels with Saubhagya Scheme Home Lighting System.

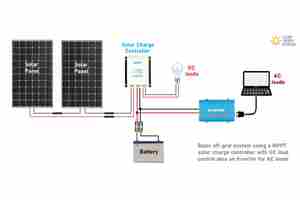

Elecssol 12V/20A solar charge controller with inbuilt 16x2 LCD Display is a compact and low power conception PV charging system which is recently launched by our experts that provides maximum charging efficiency in any environmental condition. This charge controller is equipped with a number of outstanding features such as charging status indications, low voltage disconnect indication and safety functions. It works on Maximum Power Point Tracking (MPPT) technology. It provides three state charging that maintain the and increase the battery life also. The inbuilt 16x2 LCD display with back light to shows all real time parameters in day and night both.

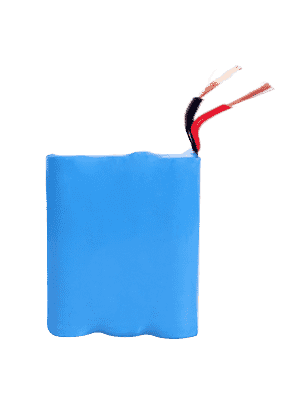

Elecssol uses new-generation Lithium LiFePO4 batteries which offers 3 times more storage and power capacity versus conventional Lead Acid batteries. This product is suitable for battery charging upto Li-FePO4 12.8V, 80Ah battery.

Elecssol offers a break-through and valuable function in remotely operating and monitoring performance of each system. It uses a range of wireless connection technologies such as Bluetooth or GPRS.

Approved Home Lighting System for Rajasthan, Maharashtra, Assam, Uttarakhand.

System Specifications of Saubhagya Scheme SPV Home Lighting System:
Description
Power of PV module (W) 12V 200W to 12V 300W (100W x2 / 150W x2)
Lithium Battery Capacity Li-FePO4 12.8V, 80Ah
Type MPPT SCC with 16x2 LCD display
Input Voltage 12 V
Charging Current (Max.) 20A
Load Current (Max.) 7A (can be customize upto 11A)
Maximum Efficiency >90%
LED Light Option of 5W. 7W, 9W LED in B-22 Cap or Batten type
DC Fan 15-20W Pedestal, Table, Ceiling Fan
No. of Load Output 1 Nos. USB port for Mobile Charging
5 Nos. DC Connector for LED Bulbs
1 Nos, DC Connector for DC Fan
1 Nos. DC Connector for DC TV (3A Max.)

Indications: Battery Low - Red LED glow, Charging - Green LED glow, Full charge - Green LED off, Normal Operation - Yellow LED glow, Other Fault - Red and Green LED Blink, Overload - Red and Green LED blink

Protections: Battery over charge, Battery deep discharge, Over Load/Short circuit protection, with auto shut down and restart. Solar and battery reverse protection, Temperature compensation, Reverse current from battery at night, Surge protection

LCD Display Parameters: PV voltage, PV current, Battery voltage, Battery current, Load current, Battery percentage, Battery backup time left (Hrs. - min), Faults
